AMP康普57893-3安普7類雙屏蔽網線 七類萬兆雙絞線 SFTP
57893-3

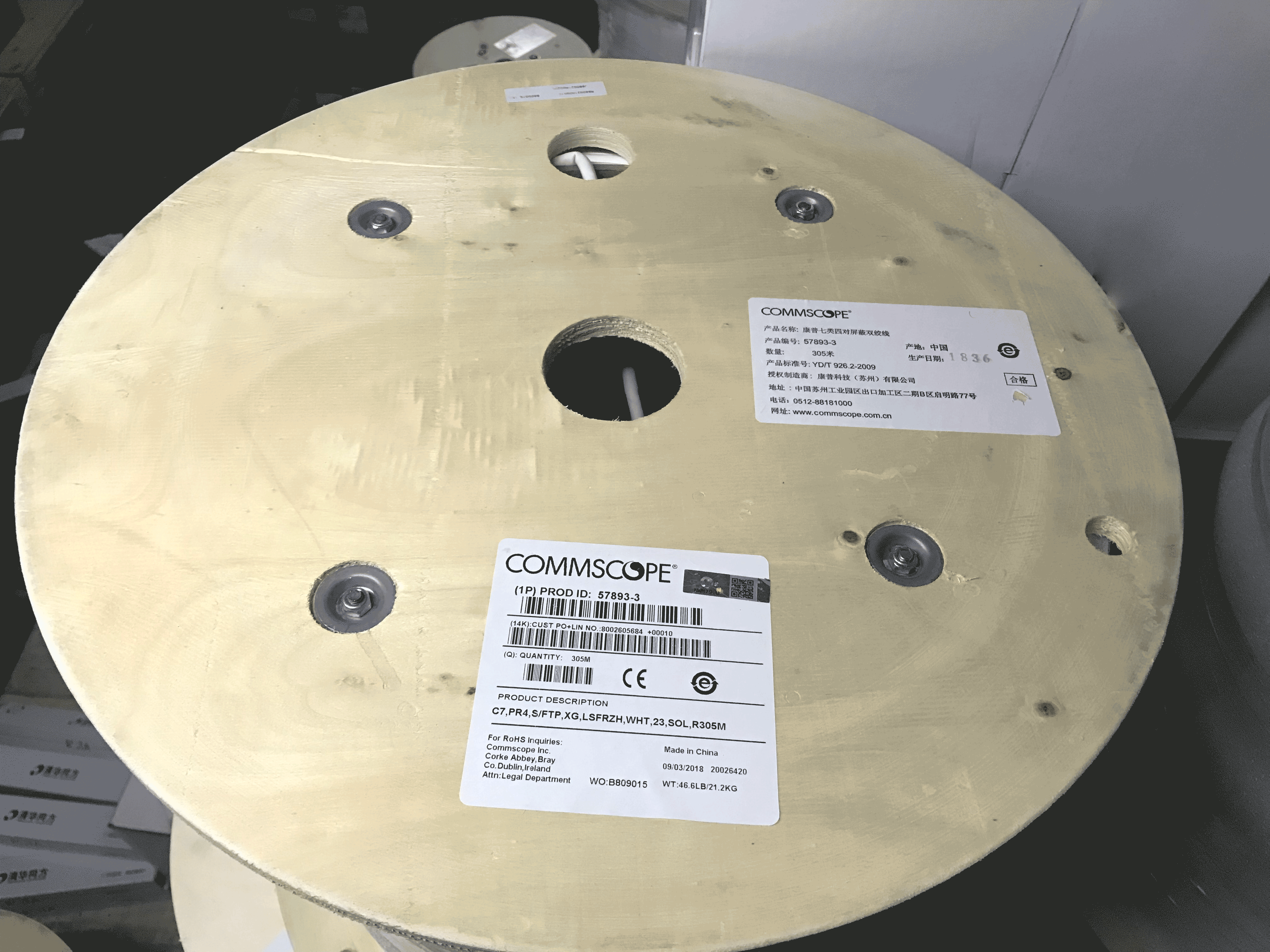

Copper Cable, category 7, 4 pair simplex, S/FTP, LSFRZH, XG, 23 AWG solid, 305 m, white
| Product Classification |
| Portfolio | NETCONNECT® |
| Product Type | Twisted pair cable |
| Regional Availability | Asia Australia/New Zealand EMEA Latin America |
|
| Standards And Qualifications |
| EN50575 CPR Cable EuroClass | Dca s2 d1 a1 |
|
| Construction Materials |
| Jacket Material | Low Smoke Fire Retardant Zero Halogen (LSFRZH) |
| Conductor Material | Bare copper |
| Insulation Material | Polyolefin |
| Shield (Tape) Material | Aluminum/Polyester |
|
| Dimensions |
| Cable Length | 305 m 1001 ft |
| Diameter Over Jacket, nominal | 7.300 mm 0.287 in |
|
| Electrical Performance |
Click on image below to enlarge.
|
| |
|
| Electrical Specifications |
| ANSI/TIA Category | 7 |
| Characteristic Impedance | 100 ohm |
| Characteristic Impedance Tolerance | ±15 ohm |
| dc Resistance, maximum | 15.00 ohms/100 m |
| Delay Skew, maximum | 7 ns |
| Nominal Velocity of Propagation (NVP) | 80 % |
| Transmission Standards | CENELEC EN 50288-4-1 ISO/IEC 11801 Class F |
|
| General Specifications |
| Cable Type | S/FTP (shielded) |
| Packaging Type | Reel |
| Pairs, quantity | 4 |
| Cable Component Type | Horizontal |
| Jacket Color | White |
| Conductor Gauge, singles | 23 AWG |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Agency | Classification |
| RoHS 2011/65/EU | Compliant |
| CENELEC | EN 50575 compliant, Declaration of Performance (DoP) available |
